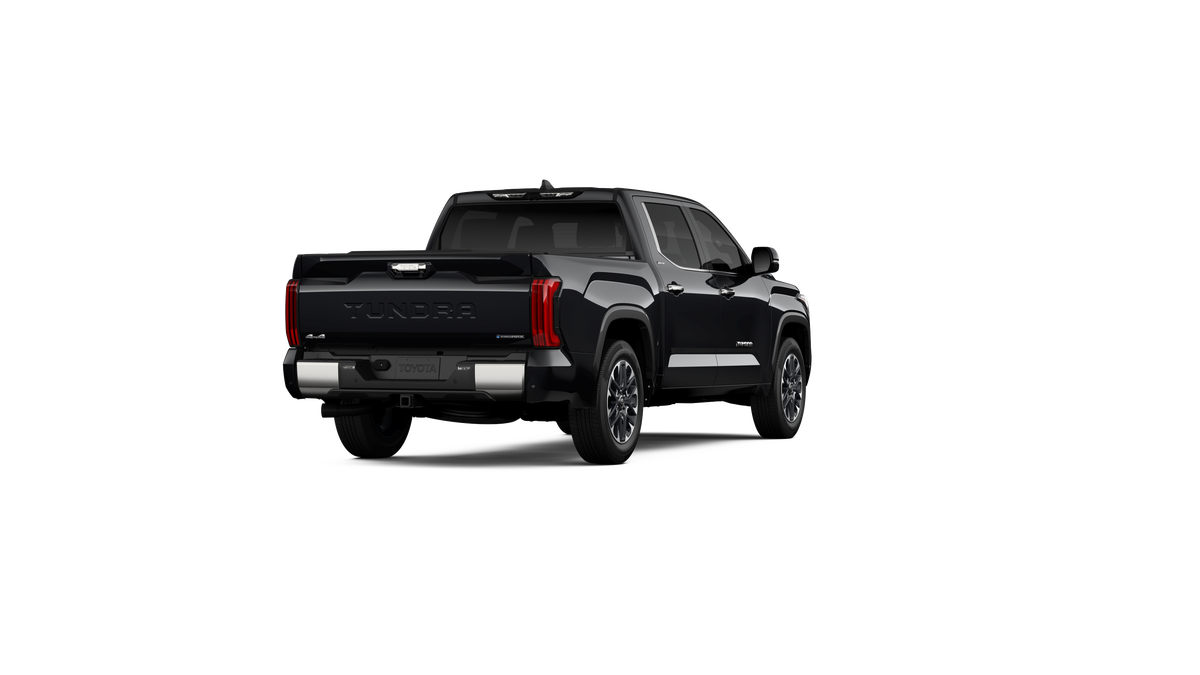

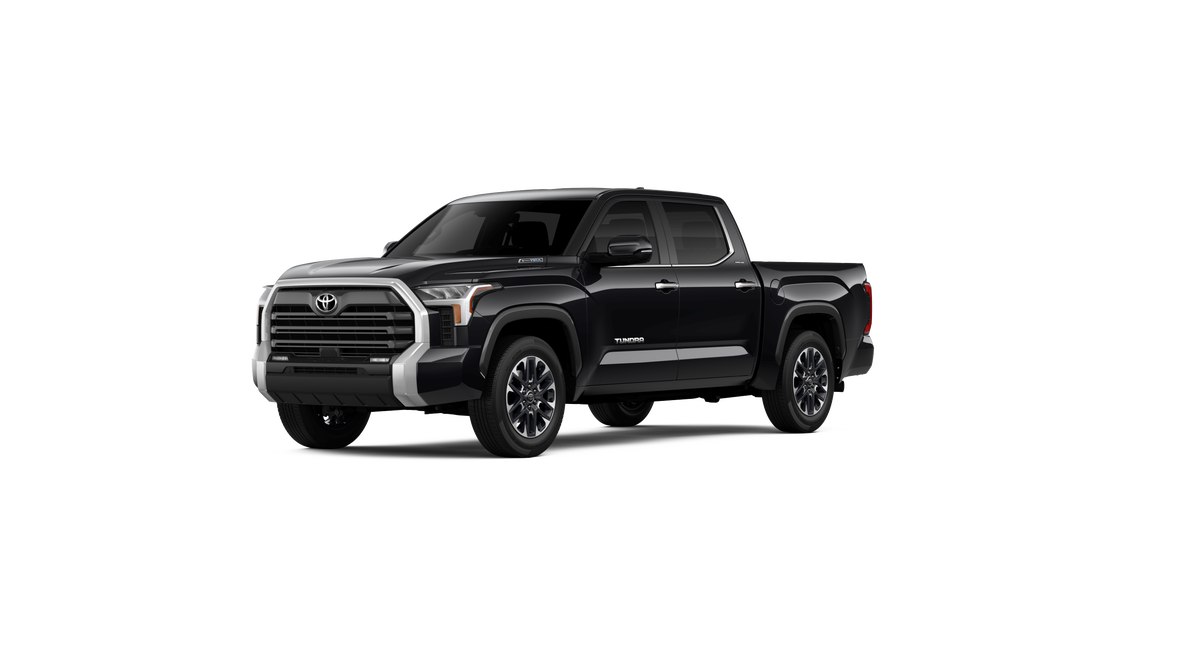

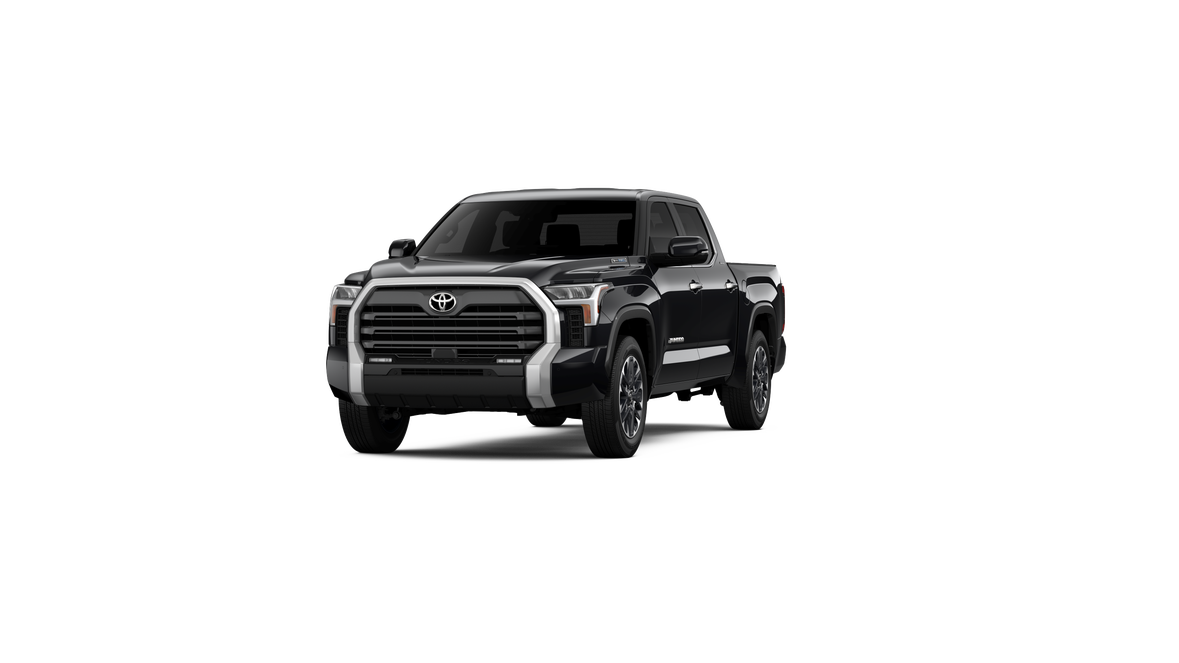

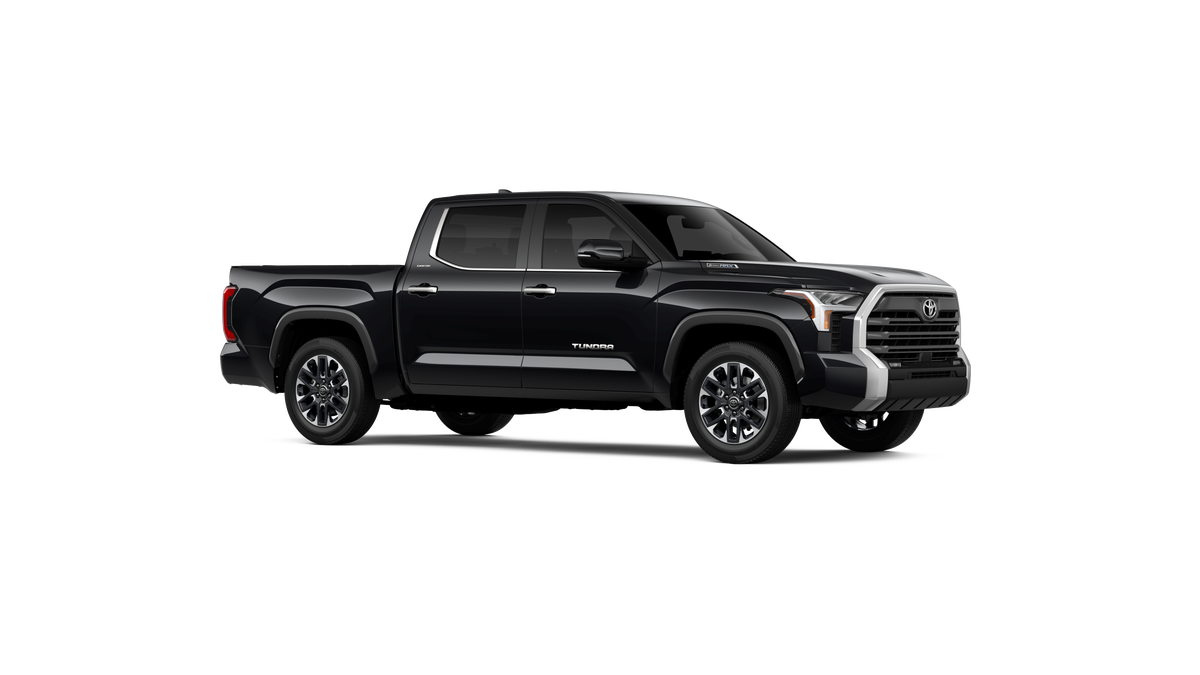

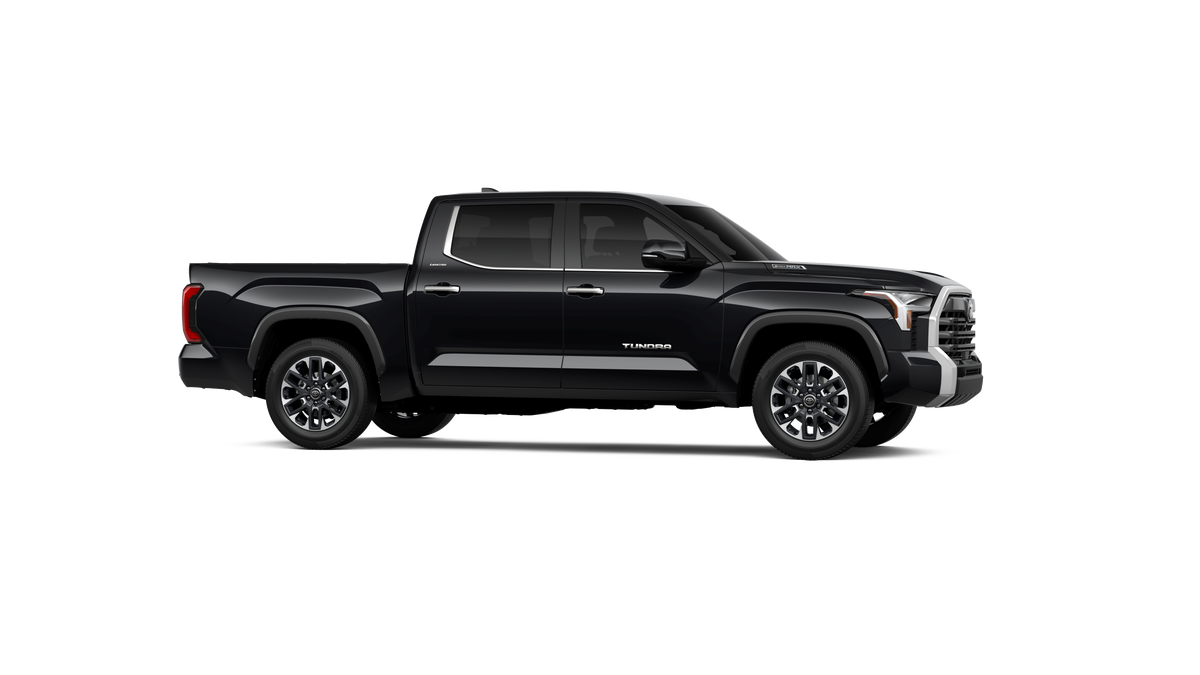

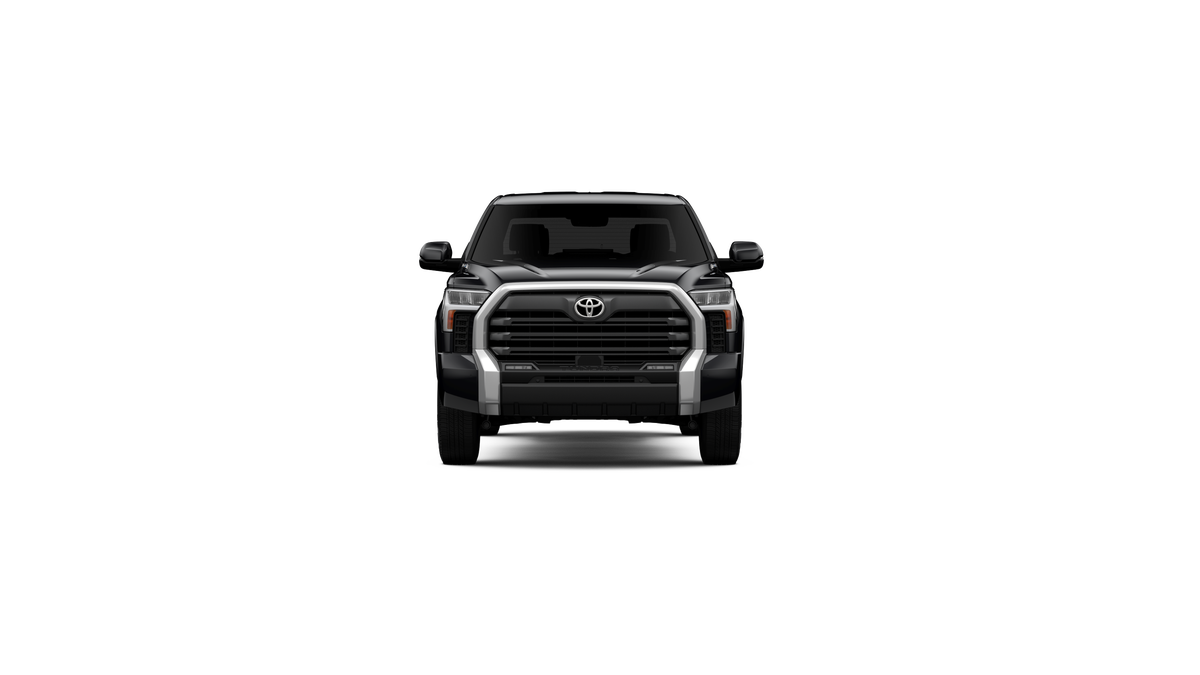

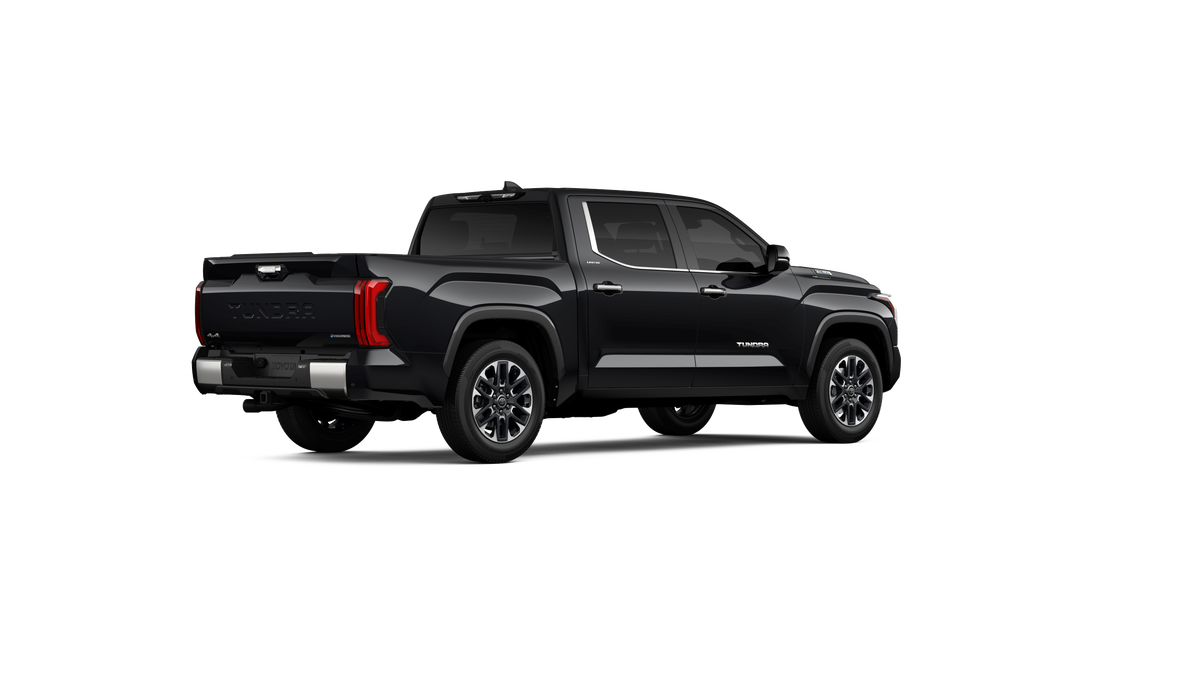

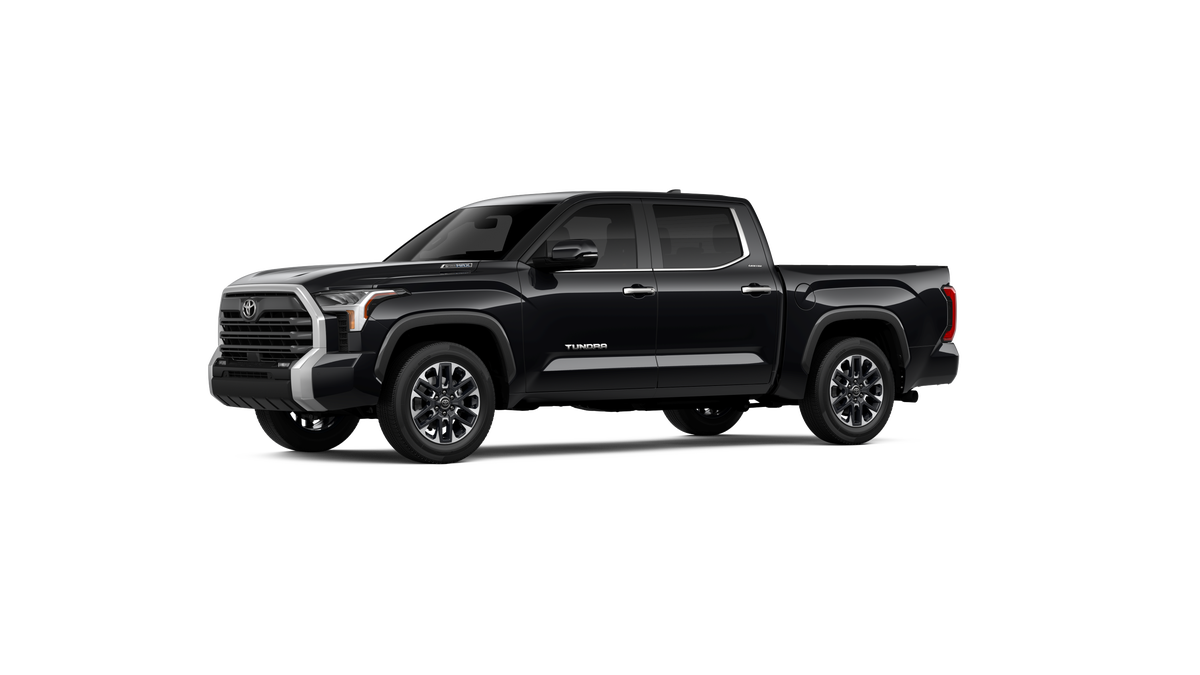

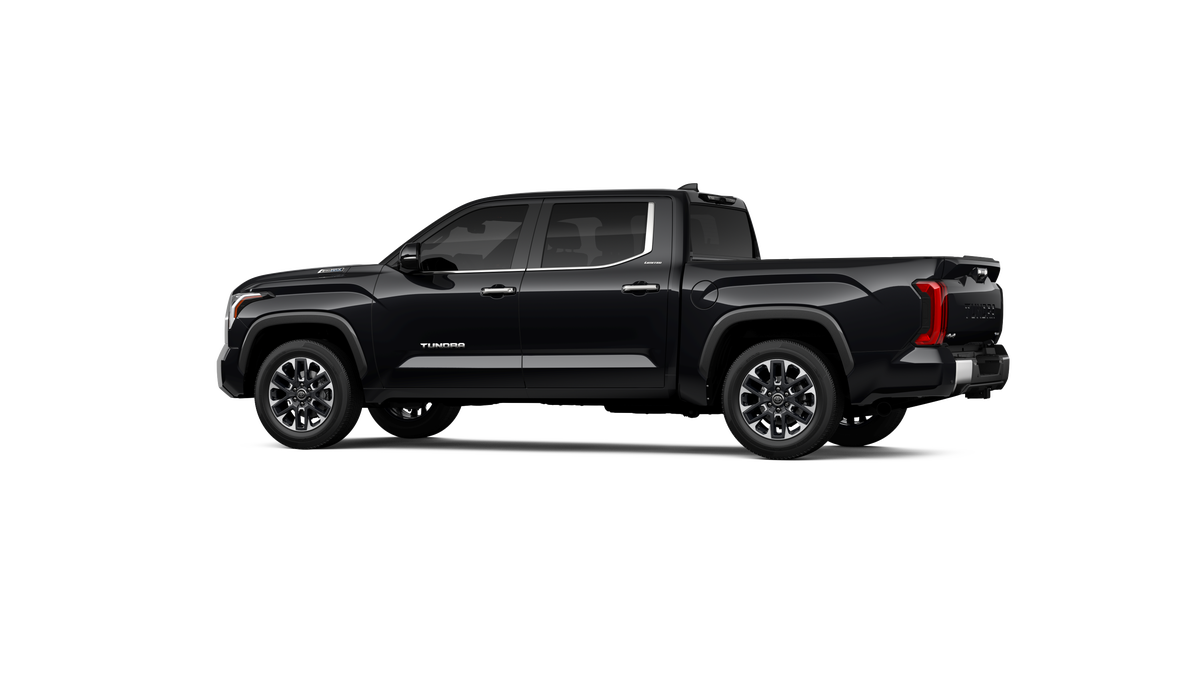

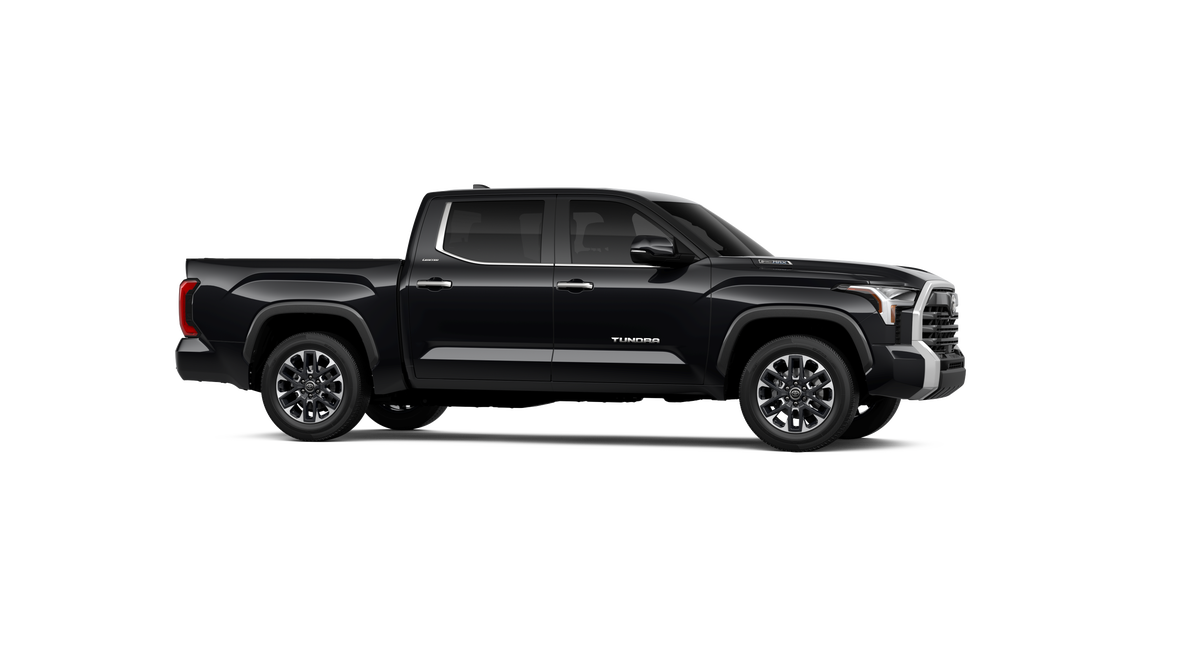

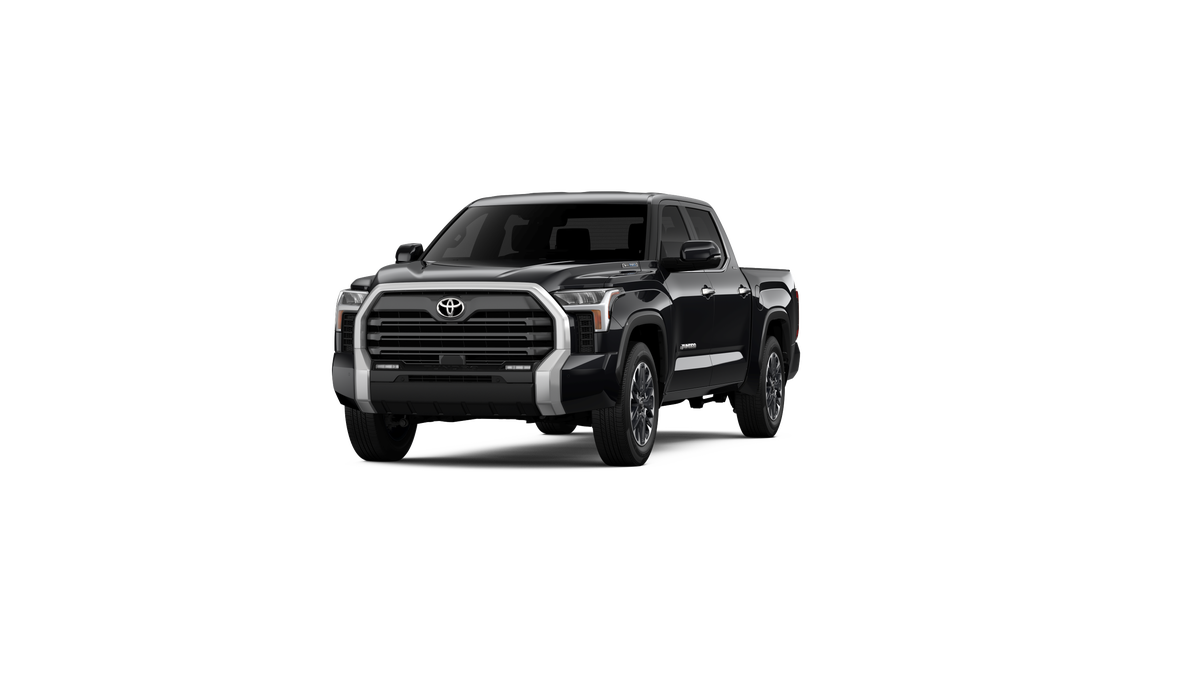

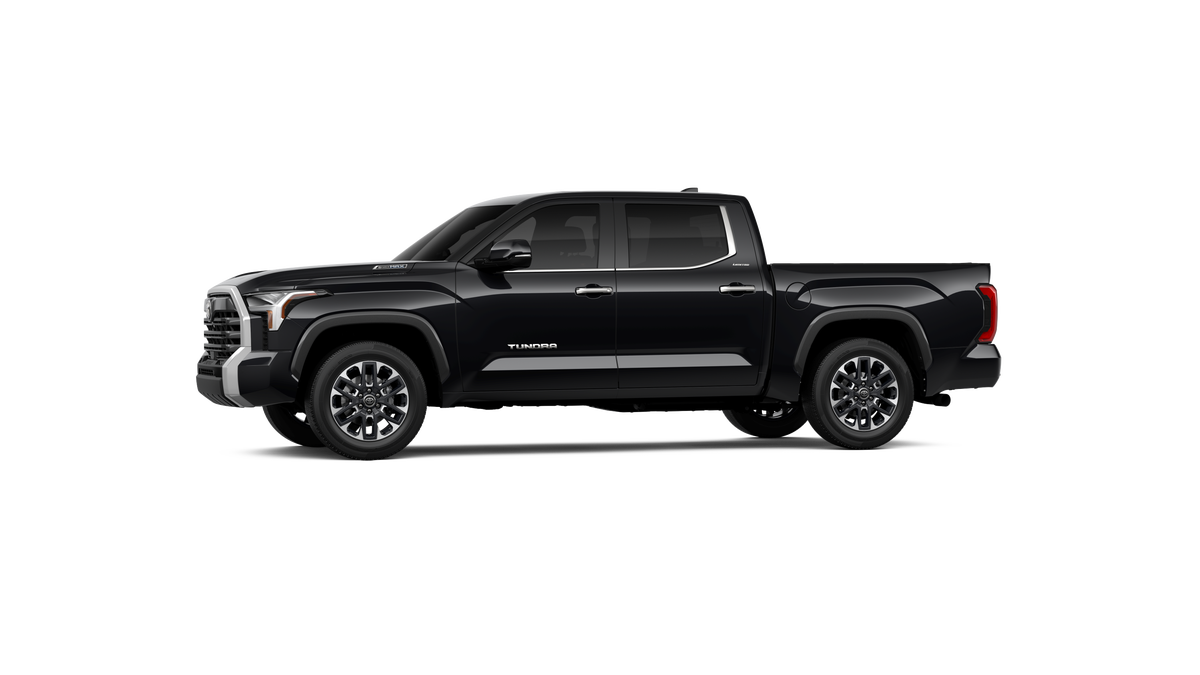

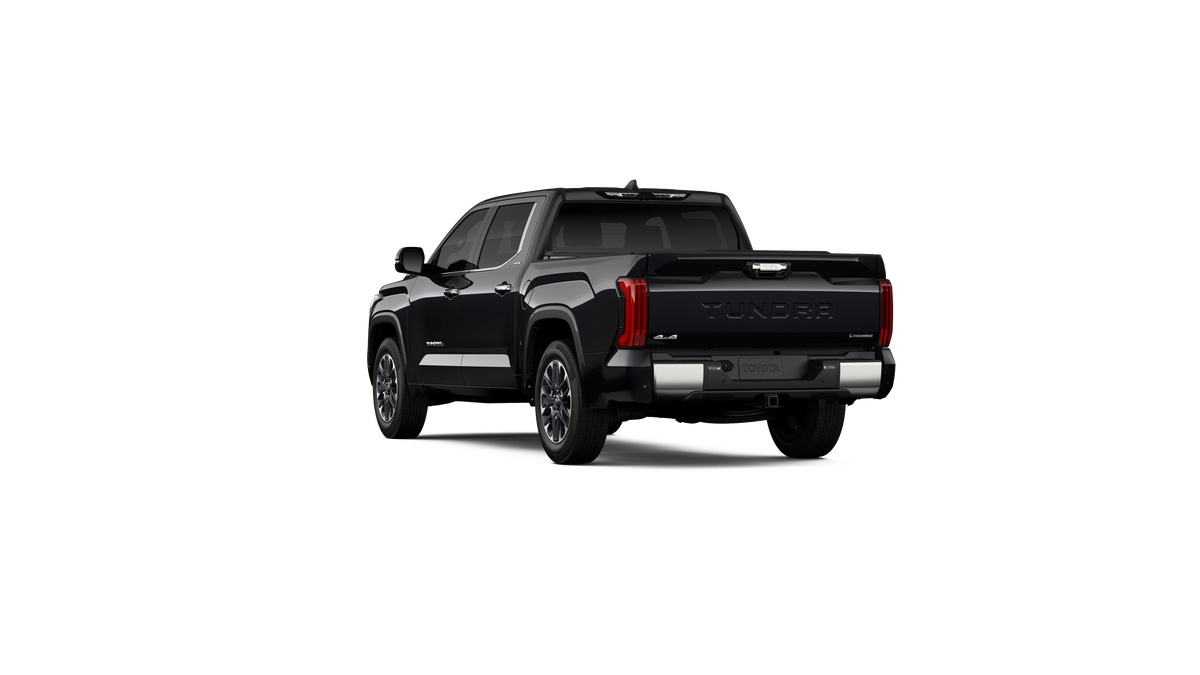

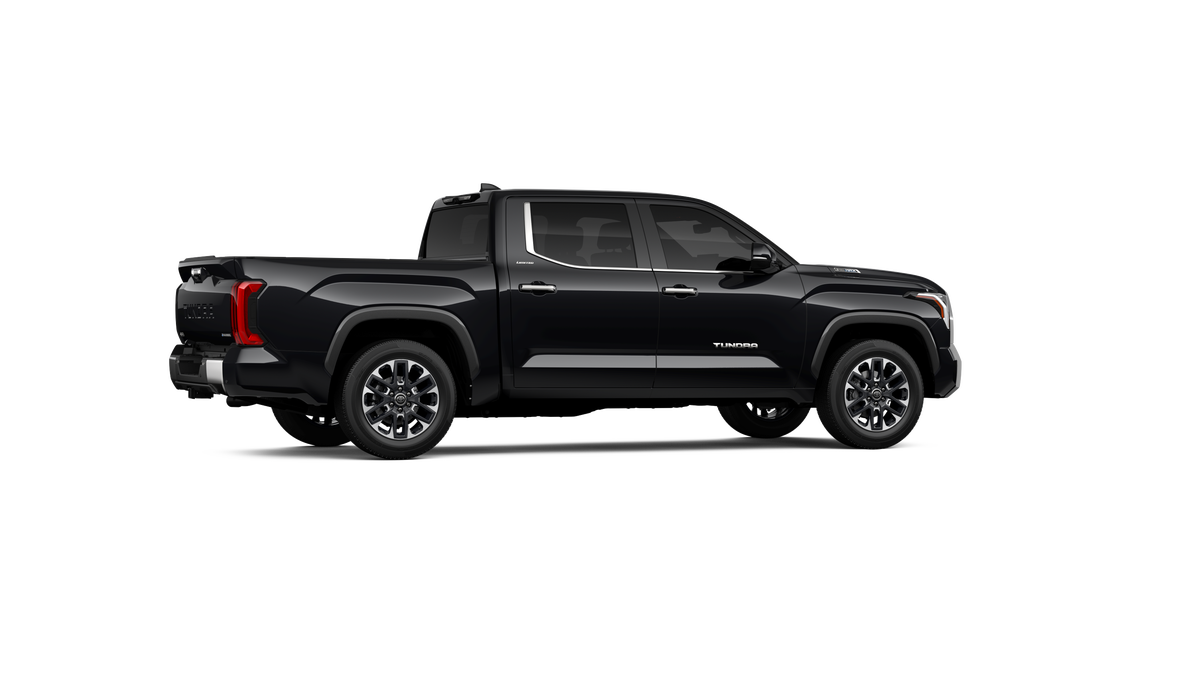

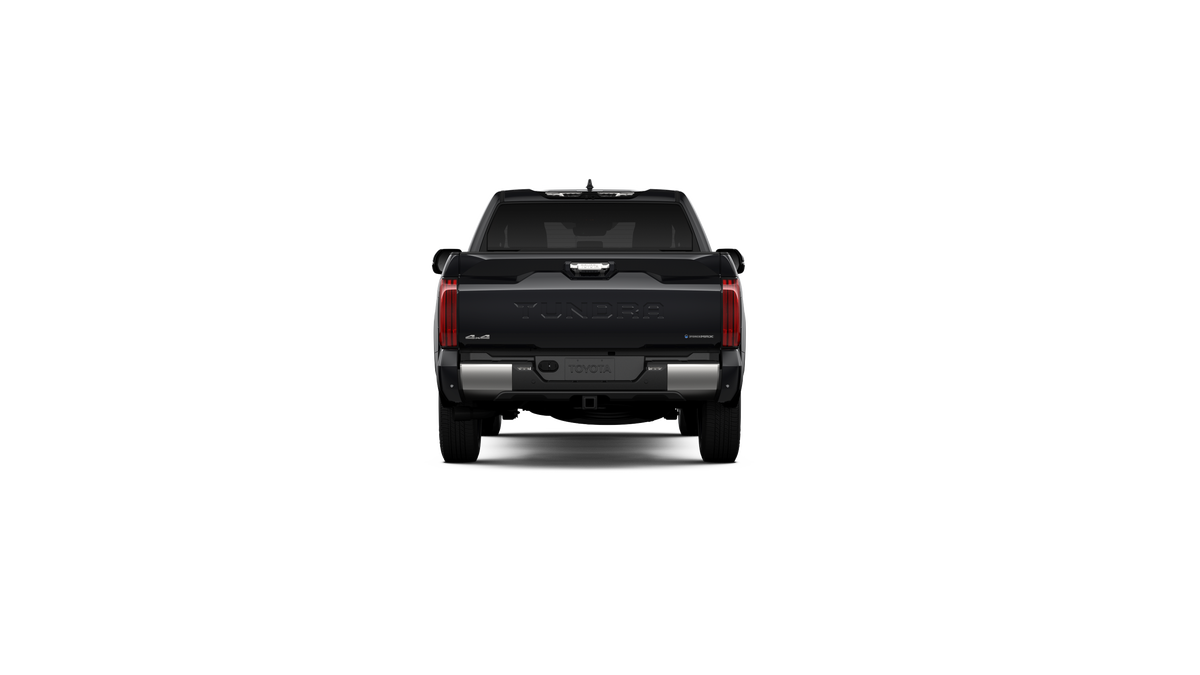

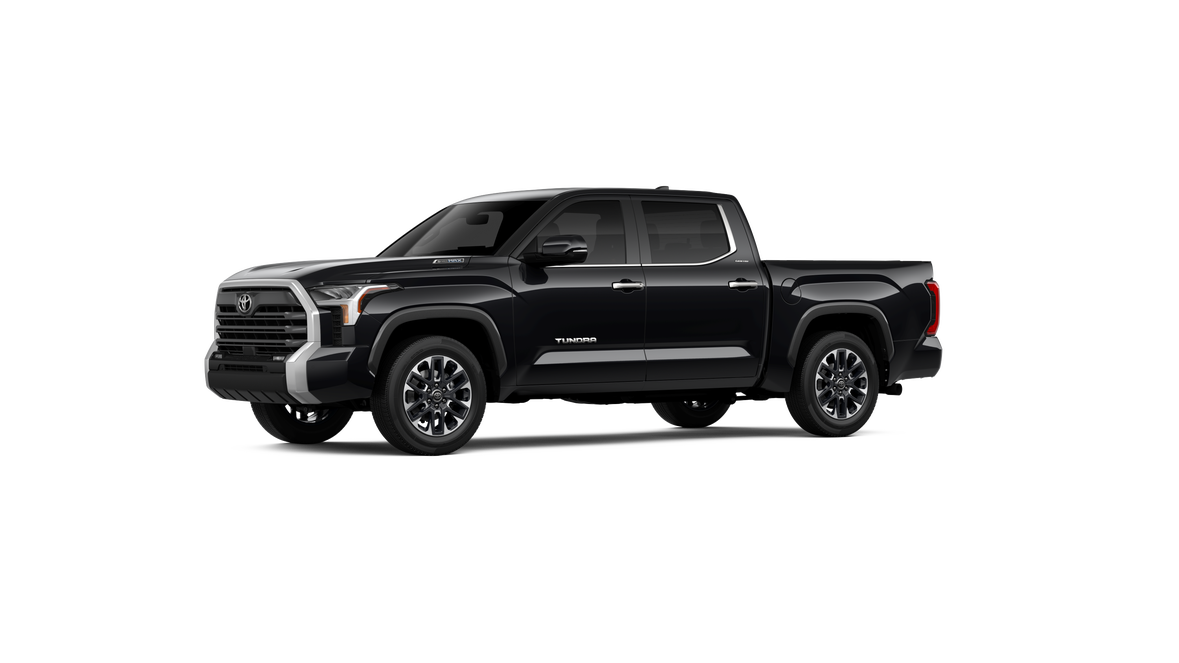

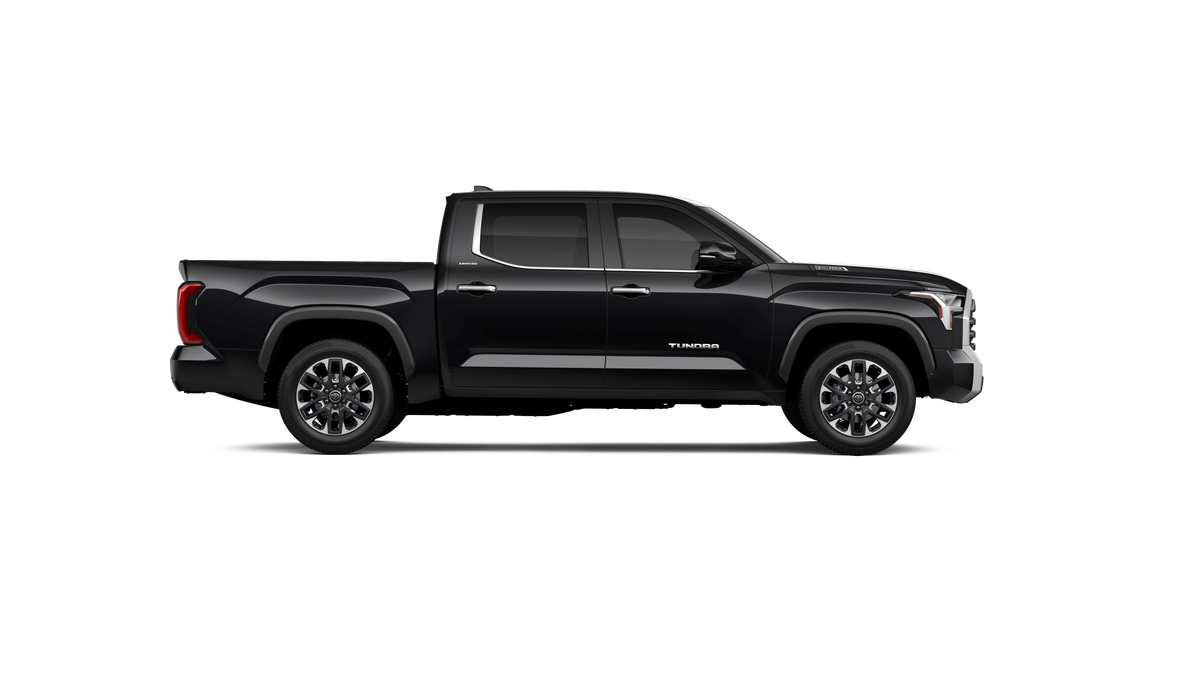

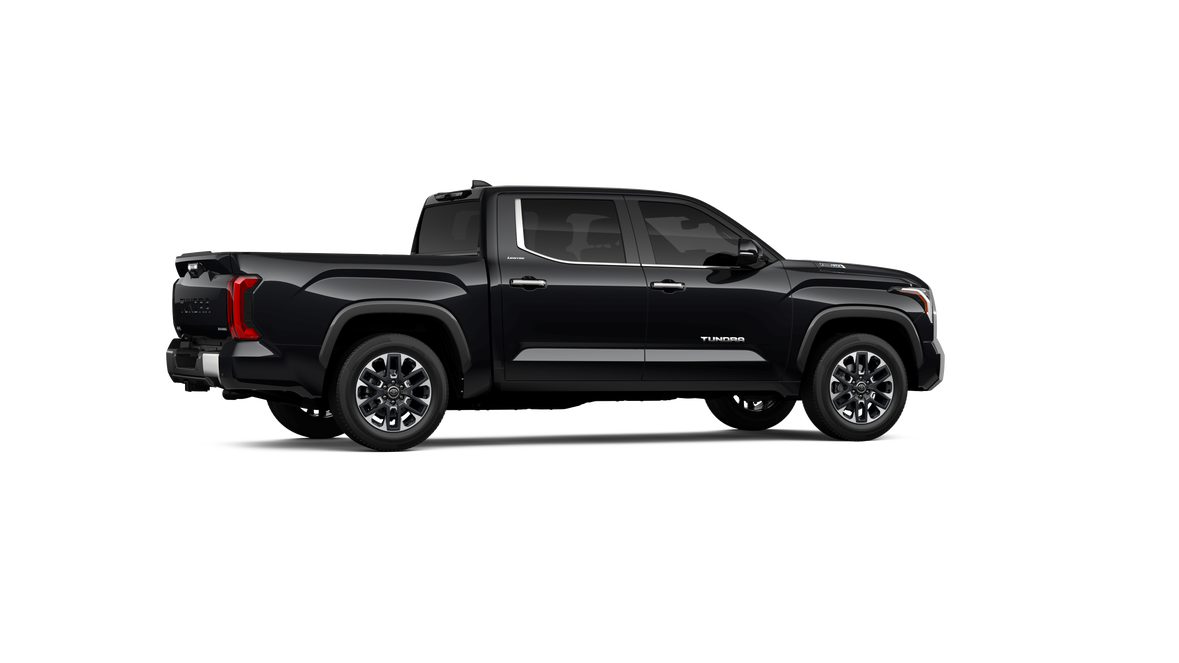

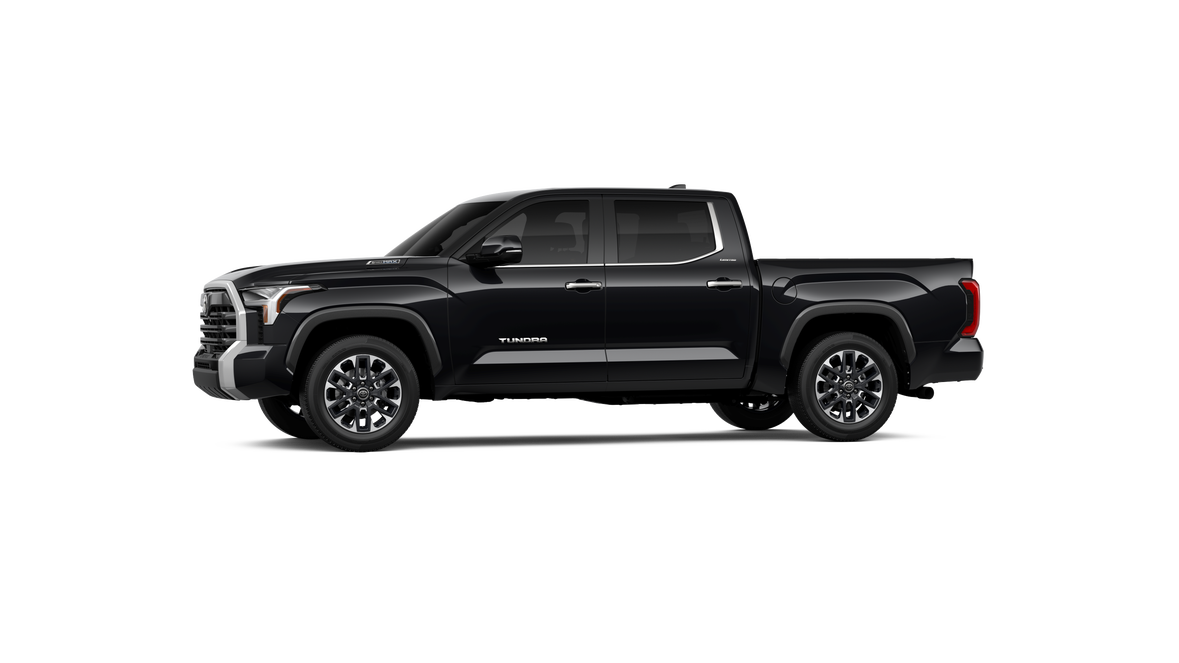

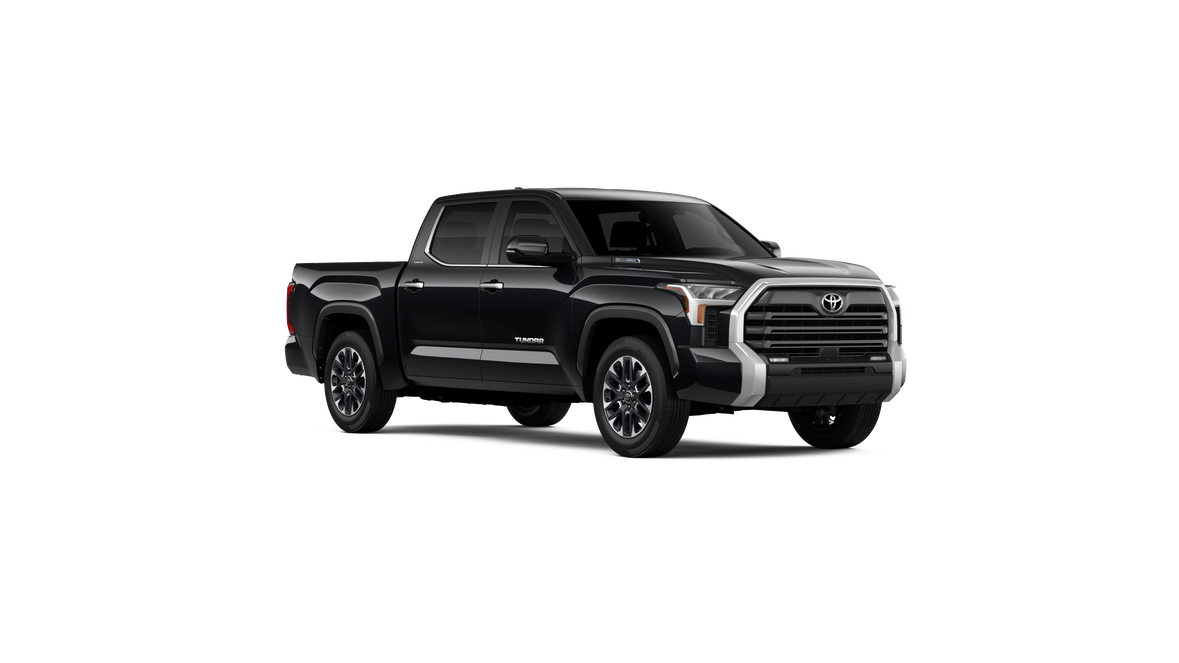

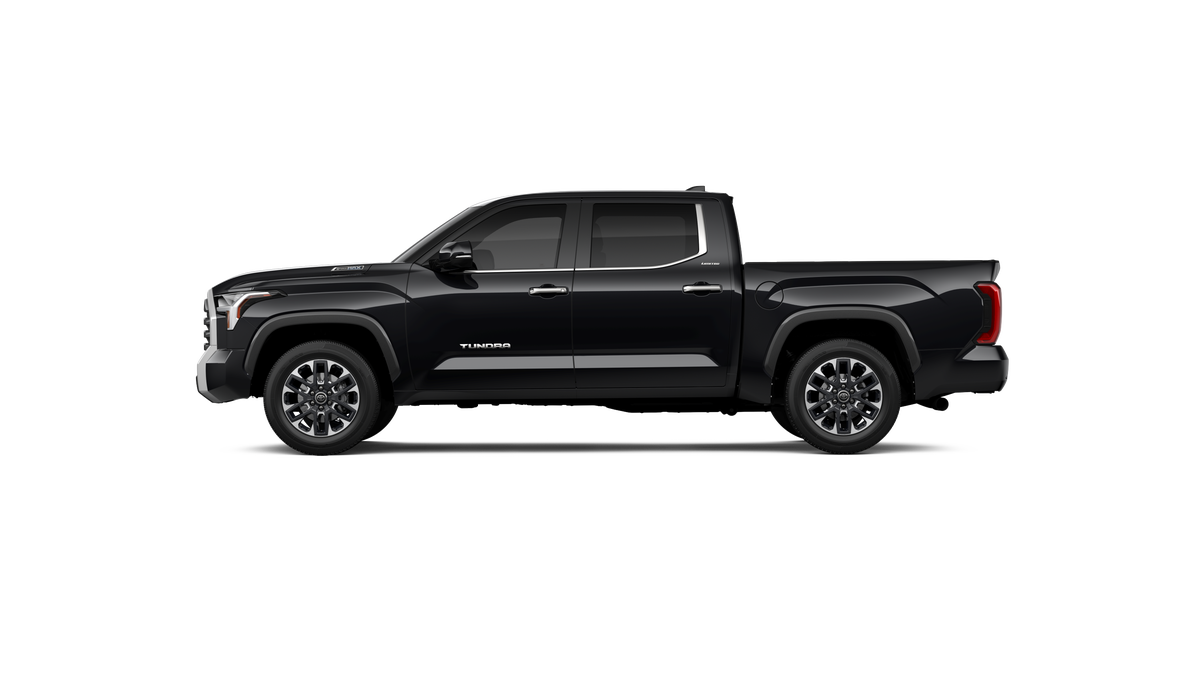

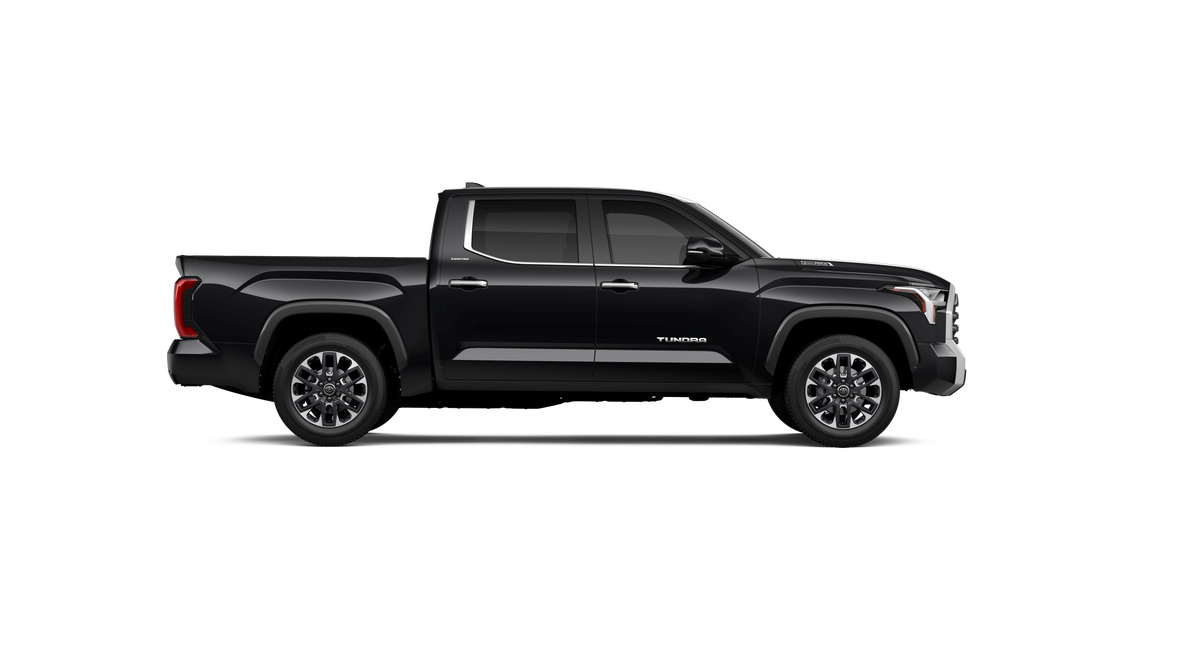

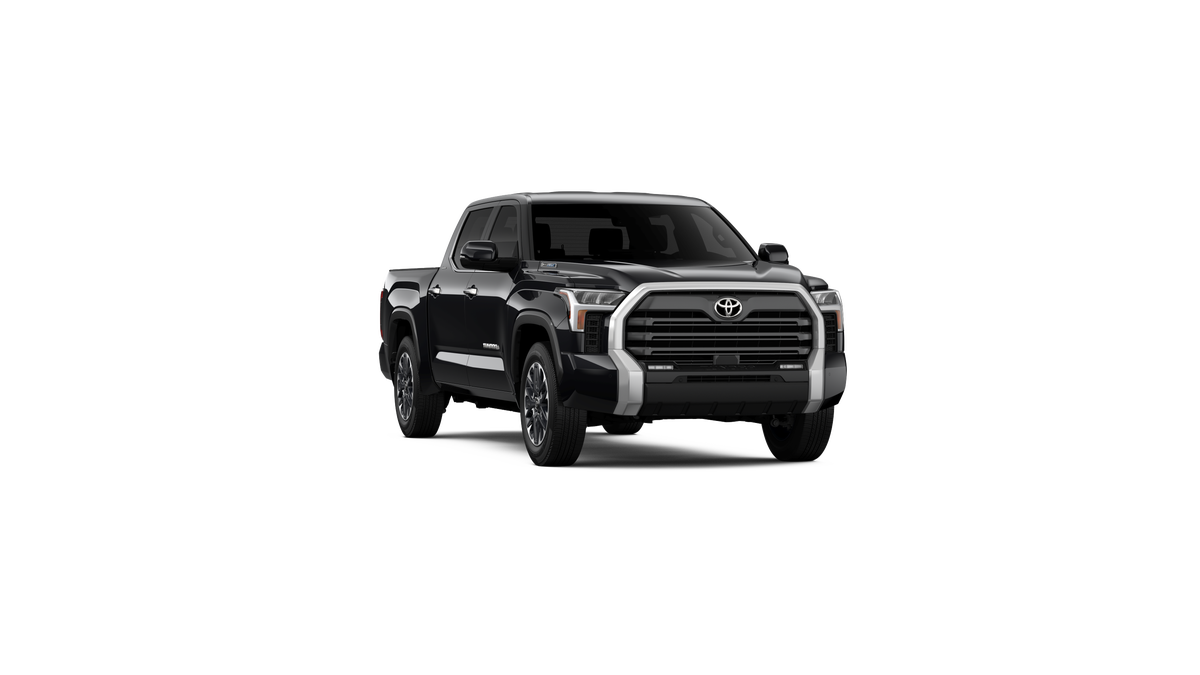

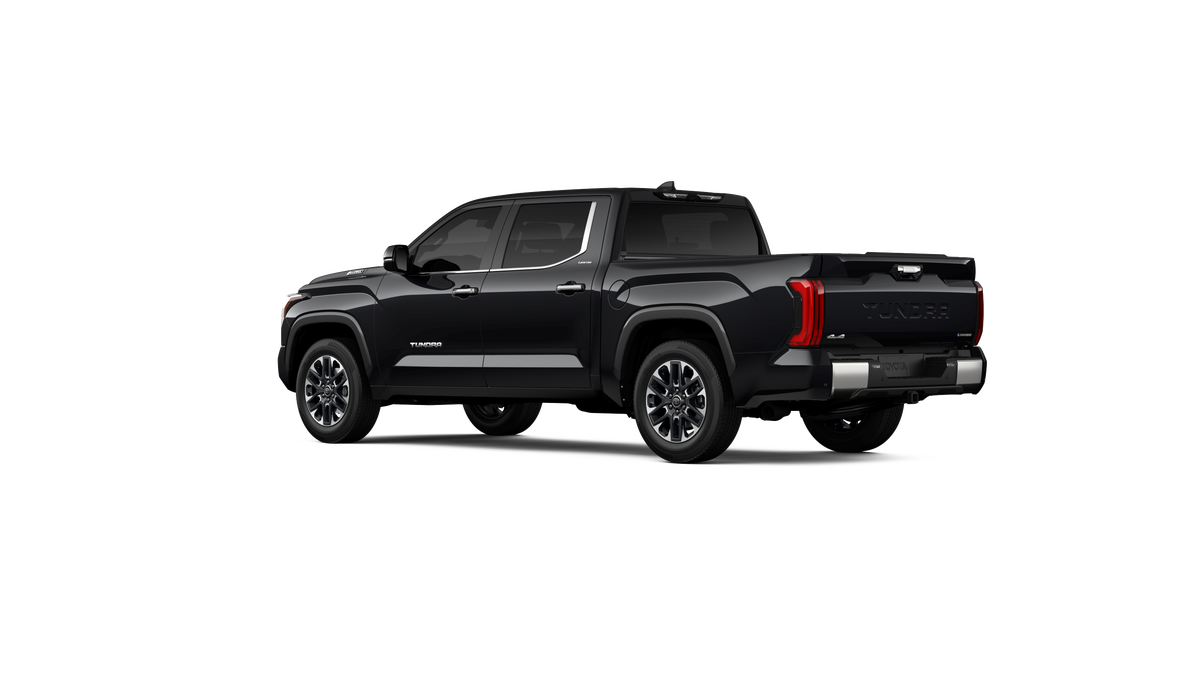

New 2025 Toyota Tundra i-FORCE MAX Limited Crewmax 5.5ft

Vehicle Features

• Exterior

  • 20-in. gray-painted and machined-finish alloy wheels
  • Front door handles with touch-sensor lock/unlock feature
  • LED headlights with Daytime Running Lights (DRL), auto on/off feature, and manual leveling adjustment
  • LED fog lights
  • LED taillights
  • Gray-painted horizontal-bar grille with satin chrome surround
  • Washer-linked variable intermittent windshield wipers
  • Heated power outside mirrors with turn signal and blind spot warning indicators, and power-folding and reverse tilt-down features; auto anti-glare driver's-side mirror only
  • 5.5-ft. Short Bed
  • Aluminum-reinforced composite bed construction
  • Power tailgate-release switch, located in taillights, key fob and dash with knee-lift assit
  • "TUNDRA" stamped easy lower and lift tailgate
  • LED center high-mount stop light (CHMSL) with integrated cargo lights
  • LED Trailer Reverse Assist (TRA) light
  • Gloss-black-painted A-pillar, except on Midnight Black Metallic and Blueprint
  • Chrome "TUNDRA" and "LIMITED" door badges, door handles and window molding; color-keyed mirror caps and tailgate spoiler; gray-painted overfenders
  • "i-FORCE MAX" hood badge
  • "4x4" tailgate badge

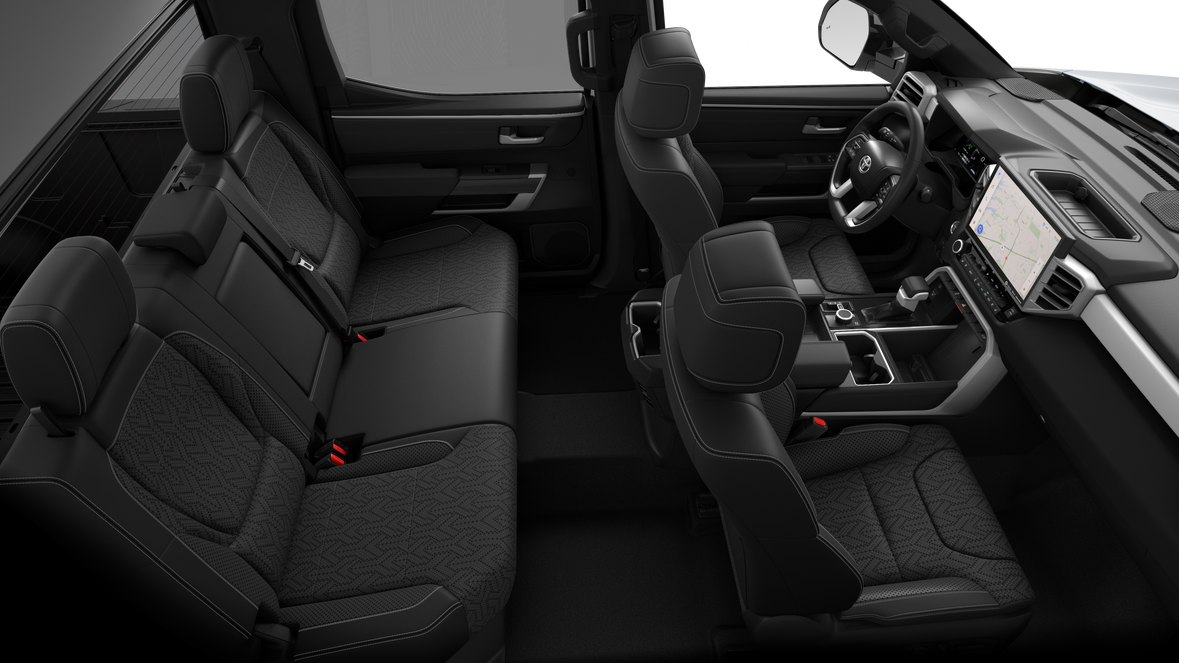

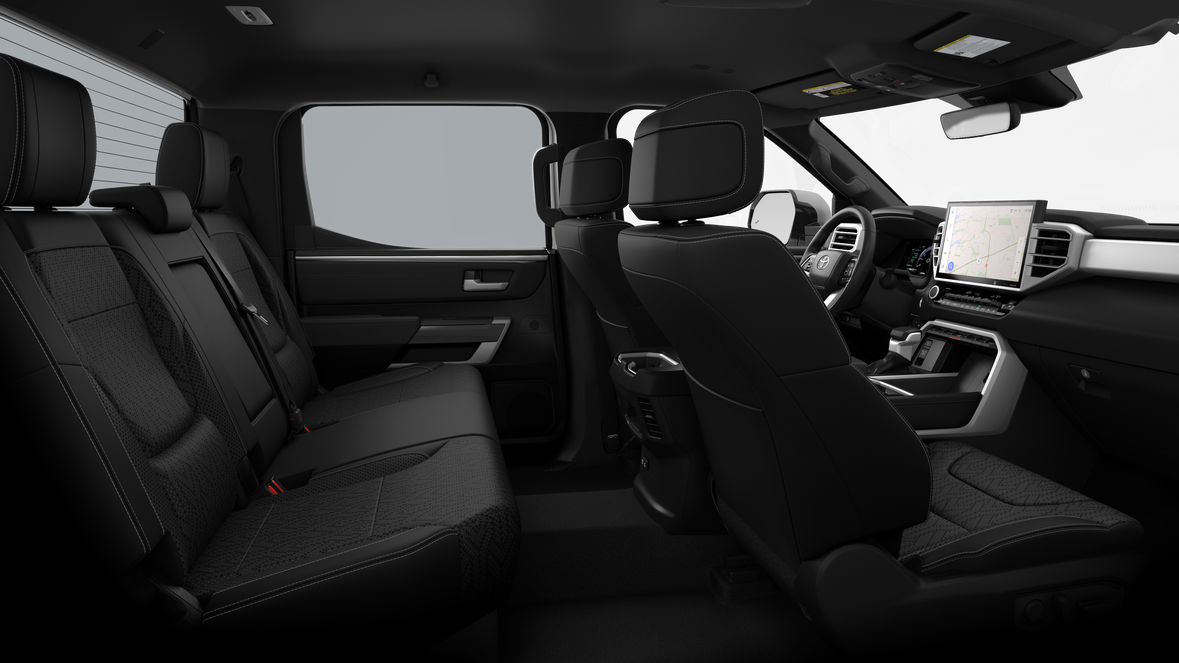

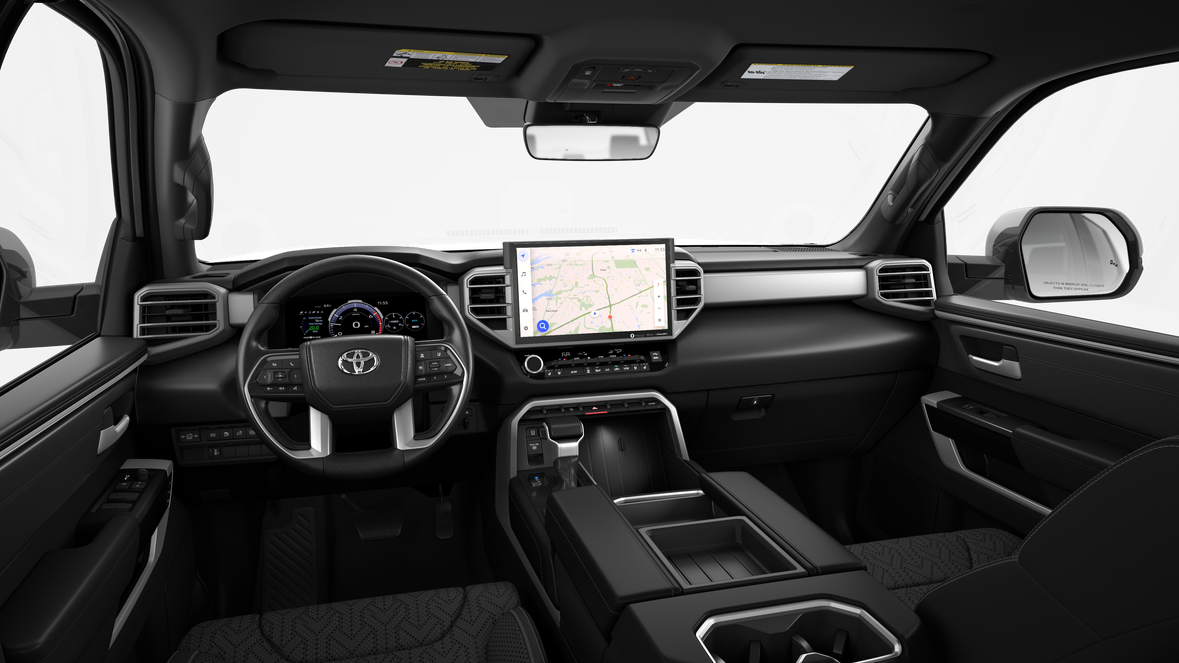

• Interior

  • Thin-bezel auto-dimming rearview mirror with HomeLink® universal transceiver
  • Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
  • Power vertical rear window with defogger and privacy glass
  • Acoustic laminated windshield
  • Power windows with one-touch auto up/down and jam protection
  • Front and rear LED maplights
  • Illuminated center console storage bin and glove box
  • Soft-touch instrument panel, center console and door surfaces
  • Leather-wrapped shift knob
  • Backup camera with projected path
  • Drive Mode Select (DMS) switch and dial
  • Rear-seat air vents
  • Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
  • Front 12V auxiliary power outlet
  • Overhead console with rear window control, sunglasses storage and Safety Connect®
  • Electronic locking fuel door
  • Front and rear assist grips
  • 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages
  • SofTex®-trimmed seats; 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support
  • Driver's-seat memory function
  • Heated front seats
  • Heated and ventilated front seats
  • 60/40 split, folding rear seat with center armrest and cup holders
  • Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger
  • Leather-wrapped manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls

• Mechanical

  • Engine: i-FORCE MAX 3.4L Twin-Turbo V6 Hybrid; 437 hp @ 5200 rpm; 583 lb.-ft. @ 2400 rpm
  • Valvetrain: 24-valve DOHC aluminum cylinder heads with Dual Variable Valve Timing with intelligence (VVT-i); 3445 c.c. aluminum engine block; 85.5 x 100 (mm.) bore x stroke; 10.4:1 compression ratio
  • Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
  • Fuel System: D-4ST direct-injection and port-injection fuel system
  • Ignition System: Conventional 12V starter
  • Exhaust System: Stainless steel exhaust system
  • HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
  • HV Electric Motor: Electric motor power: 48 hp (36 kW)
  • HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
  • HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
  • Drive Modes: Eco, Normal and Sport driving modes
  • Transmission: 10-speed Electronically Controlled automatic Transmission with intelligence (ECT-i), sequential shift mode, and uphill/downhill shift logic
  • Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low range) and Automatic Limited-Slip Differential (Auto LSD)
  • Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
  • Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
  • Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
  • Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
  • Brakes: Electric Parking Brake (EPB)
  • Body/Frame: Fully boxed high-strength steel ladder frame
  • Body/Frame: Hydraulic cab mounts
  • Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
  • Body/Frame: Active aero front spoiler
  • Body/Frame: Active grille shutters
  • Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
  • Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls

• Safety

  Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
  • 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
  • Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
  • Front and Rear Parking Assist with Automatic Braking
  • Eight total airbags, including driver and passenger side, knee and curtain airbags
  • LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
  • Child-protector rear door locks and power window lockout control
  • Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
  • Drive-Start Control (DSC)
  • Hill Start Assist Control (HAC)
  • Tire Pressure Monitor System (TPMS)
  • Driver and front passenger active headrests
